What is the difference between 9mm and 16mm fascia board?

9mm board is capping: it is fixed over sound existing timber to smarten the roofline without stripping back. 16mm is the full replacement thickness, strong enough to carry the guttering on its own once the old timber is off. If the timber behind is soft or rotten, capping over it only hides the problem.

How is fascia board fixed?

Through into the rafter ends with polytop nails or stainless screws, two per rafter, at the top and bottom of the board so it cannot rotate under the weight of a full gutter. Fix into sound timber — if the rafter ends are soft they need cutting back and a new timber before the board goes on.

How far apart should gutter brackets be?

Fascia brackets are normally fixed at 800mm to 1000mm centres, closer where snow load is likely, with a bracket within 150mm of every union, angle and outlet. Set a fall of roughly 1:600 towards the outlet, about 3mm per metre, so water runs off rather than standing in the bottom of the gutter.

Do fascia, soffit and guttering need to match?

They do not have to, but a roofline reads as one line from the ground, so mismatched whites or a grey gutter on a white fascia tend to show. If you are replacing in stages, settle the colour across fascia, soffit, guttering and downpipe at the start rather than matching to what is already up.

Do I need vented soffit board?

A pitched roof needs continuous airflow at the eaves, so unless ventilation comes from somewhere else — over-fascia vents or a ventilated ridge — the soffit should be vented. Hollow soffit has the gap built into each joint. Flat soffit is unvented, so pair it with a vent strip or circular vents.

16mm Fascia Board

16mm fascia board is the full replacement thickness, strong enough to carry guttering directly once old timber has been stripped off. uPVC fascia boards come in 3m and 5m lengths, in widths from 100mm to 405mm. To cover existing timber instead, see fascia capping.

Free delivery on orders over £150 inc VAT. 22 UK Branches

Showing 15 Results

In Stock

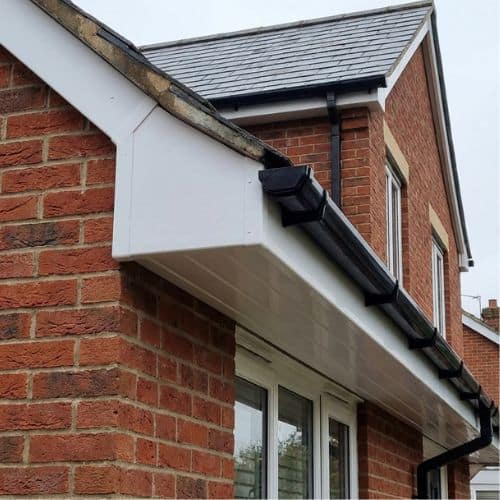

large fascia board fitted onto roof - installed

Aquacel 16mm x 100mm x 5m Fascia BoardLength: 5m·0.5 m²

£31.72Inc. VAT

£63.43 per m² Inc. VAT

16mm Fascia Board

Choosing 16mm Fascia Board

Full replacement thickness

Do the whole elevation

Sizes

Frequently Asked Questions

What is the difference between 9mm and 16mm fascia board? + −

How is fascia board fixed? + −

How far apart should gutter brackets be? + −

Do fascia, soffit and guttering need to match? + −

Do I need vented soffit board? + −
